Description

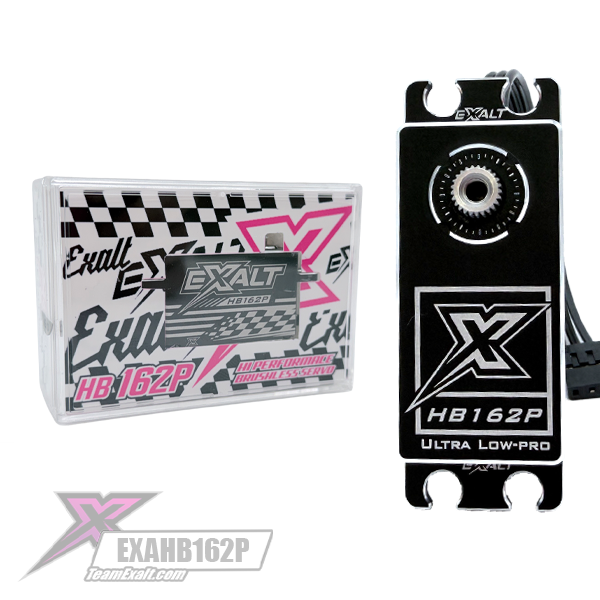

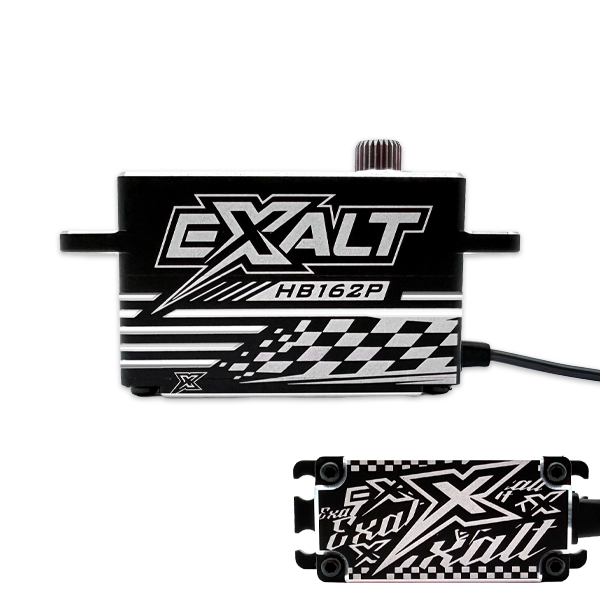

HB162P Low Pro Brushless Servo (Programmable)
EXAHB162P
The Team Exalt EXAHB162P is designed for racers demanding exceptional precision, reliability, and steering authority. Combining high torque output with rapid transit speeds, the HB162P delivers the confidence needed for today’s high-grip racing surfaces and demanding vehicle classes. Whether you’re competing in on-road, off-road, oval, or scale applications, the HB162P provides the responsiveness and holding power necessary to maintain consistent control throughout the race.
Built with dual ball bearings, a wide operating voltage range, and digital circuitry, the HB162P offers smooth operation, excellent centering characteristics, and dependable performance under the most demanding conditions. Its compact standard-size footprint makes it a versatile choice for a wide variety of vehicles.
The EXAHB162P is also fully programmable, allowing racers to fine-tune performance characteristics to suit their driving style and track conditions. Programming requires the Team Exalt EXAXPS23 USB Programming Interface. For a complete list of programmable parameters and available adjustments, please visit the EXAXPS23 product listing.
Specifications
- Control System: Pulse Width Modulation Control
- Refresh Rate: 333Hz
- Neutral Position: 1520µs
- Signal Mode: Digital
- Dead Band: 2µs
- Operating Voltage: 4.8V–8.4V
- Operating Temperature: -15°C to +70°C
- Bearing: Dual Ball Bearing (2BB)
- Mechanical Angle: 220°
- Operating Travel: 180° ±10°
- Signal Range: 500–2500µs
- Dimensions: 40.8 × 20.2 × 26.1mm
- Weight: 62g
- Wire Length: 200mm (22AWG)
Torque
- 17.0 kg-cm (236 oz-in) @ 4.8V
- 21.0 kg-cm (292 oz-in) @ 6.0V
- 25.0 kg-cm (347 oz-in) @ 7.4V
- 27.0 kg-cm (375 oz-in) @ 8.4V
Speed
- 0.100 sec/60° @ 4.8V
- 0.085 sec/60° @ 6.0V
- 0.075 sec/60° @ 7.4V
- 0.068 sec/60° @ 8.4V
Current Draw
No Load Current
- 450mA @ 4.8V
- 500mA @ 6.0V
- 550mA @ 7.4V
- 600mA @ 8.4V
Load Current
- 4800mA @ 4.8V
- 5500mA @ 6.0V
- 5800mA @ 7.4V
- 6200mA @ 8.4V
Recommended Applications: 1/10 Off-Road, 1/10 On-Road, Dirt Oval, Drag Racing, Crawlers, and Scale RC Vehicles.
