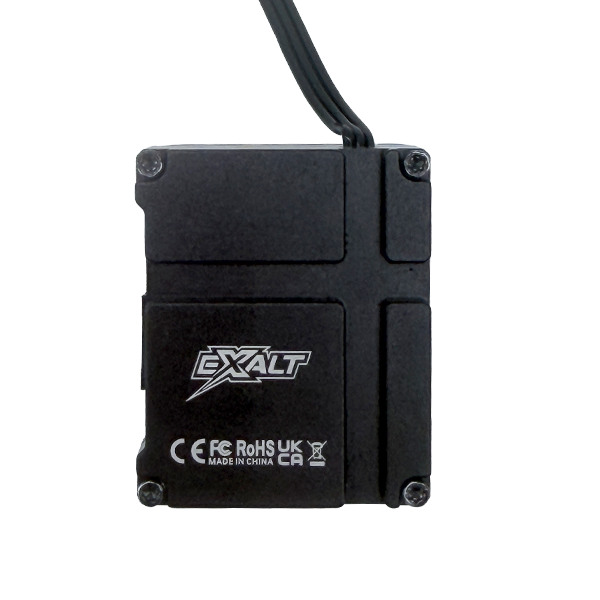

Xscend Pro-X 180A Competition ESC

EXAXSC10

Precision. Control. Data. Performance.

The Team Exalt Xscend Pro-X was engineered from the ground up for one purpose—to provide racers with the most advanced, intuitive, and reliable competition ESC Team Exalt has ever produced. Combining cutting-edge hardware with intelligent software, the Xscend Pro-X delivers exceptional power, cooler operating temperatures, industry-leading data logging, and nearly unlimited tuning capabilities.

Designed for Stock, Modified, Touring Car, Off-Road, Oval, and Drift, the Xscend Pro-X gives drivers complete control over every aspect of motor performance while maintaining the consistency demanded by today’s highest levels of competition.

Advanced Hardware Designed for Maximum Performance

The Xscend Pro-X features a multi-layer low-resistance PCB architecture engineered to efficiently carry extremely high current loads while minimizing electrical losses. Lower electrical resistance means less wasted energy, lower operating temperatures, and more battery power delivered directly to the motor.

An integrated current sensing circuit continuously monitors motor current in real time without increasing the size of the ESC. This provides significantly more accurate over-current protection while supplying valuable operating data for performance analysis.

To further improve efficiency, the Xscend Pro-X utilizes Driving Efficiency Optimization (DEO), also known as Synchronous Rectification (Freewheeling). By actively controlling current flow during off-throttle conditions, DEO reduces heat generation, eliminates the dragging sensation common with traditional ESCs, and creates smoother vehicle coasting with improved overall efficiency.

Intelligent Bluetooth Programming

Programming has never been easier.

The integrated Bluetooth module connects directly to the Team Exalt App in approximately five seconds, allowing every ESC setting to be adjusted wirelessly from your smartphone.

Unlike traditional programming cards, the Team Exalt App displays real-time operating data and programming parameters on the same screen, allowing immediate adjustments while monitoring live vehicle data.

Every programmable setting also includes built-in explanations directly inside the app, eliminating the need to reference printed manuals.

Additional app features include:

• Wireless firmware updates in approximately 20 seconds
• Custom Bluetooth device naming
• Password protection
• Automatic filtering of compatible ESCs
• TXT file configuration export
• Configuration sharing
• Manufacturing date traceability
• Multiple firmware versions available for installation

Industry-Leading Data Logging

The Xscend Pro-X records operating data at an incredible 50Hz sampling rate, capturing information every 0.02 seconds.

Unlike many competitors, the Xscend Pro-X stores up to 32 individual logging sessions with virtually unlimited recording length per session.

Using the Team Exalt App, racers can:

• View graphical performance curves
• Compare runs
• Monitor memory usage
• Export logs as TXT files
• Review data offline
• Share logs with teammates and tuners

This level of data collection provides racers with an unmatched tool for dialing in gearing, timing, throttle feel, and overall vehicle setup.

Professional-Level Tuning

The Xscend Pro-X offers one of the most comprehensive tuning packages available.

Throttle Control

Choose from 17 throttle response curves:

• 8 Exponential
• 1 Linear
• 8 Logarithmic

Individual throttle percentages can also be adjusted, allowing racers to create virtually unlimited custom throttle profiles for every driving style and track condition.

Brake Control

Braking receives the same level of customization with:

• 8 Exponential Brake Curves
• 1 Linear Curve
• 8 Logarithmic Curves

Brake PWM frequency automatically adjusts based on vehicle speed to maximize braking consistency at both low and high speeds.

Independent Drag Brake Frequency and Drag Brake Boost adjustments allow incredibly precise tuning of off-throttle vehicle behavior.

Progressive Boost Timing

Rather than instantly applying maximum timing, the Xscend Pro-X utilizes an advanced Progressive Boost Timing strategy.

Timing increases smoothly by 1° every 500 RPM, producing:

• More linear acceleration
• Improved vehicle drivability
• Greater consistency
• Reduced transition harshness
• Increased driver confidence

The result is a power delivery that feels both incredibly smooth and exceptionally fast.

Competition Ready Features

• Reverse Polarity Protection
• 180A Continuous Current
• 1200A Burst Current
• 2–3S LiPo Compatible
• Adjustable 6.0V–7.4V / 10A Switching BEC
• Smart Cooling Fan Control (On / Off / Auto)
• Firmware Upgrade Support
• Compact Bluetooth Switch Module
• Built for Stock, Modified, Touring Car, Off-Road, Oval & Drift

  Why Racers Choose the Xscend Pro-X

  The Team Exalt Xscend Pro-X isn’t just another competition ESC—it’s a complete race management system. With advanced hardware protection, intelligent current management, industry-leading 50Hz data logging, progressive boost technology, and one of the most intuitive Bluetooth programming experiences available, the Xscend Pro-X gives racers the tools to tune with confidence and extract maximum performance on every lap.

  Team Exalt Xscend Pro-X — Built by Racers. Engineered to Win.
